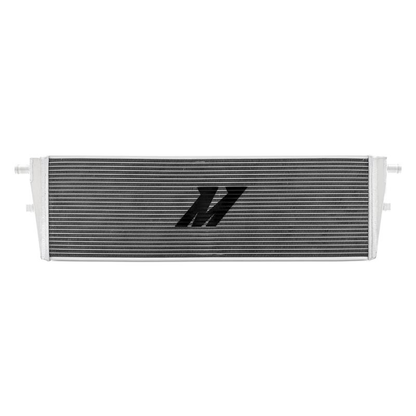

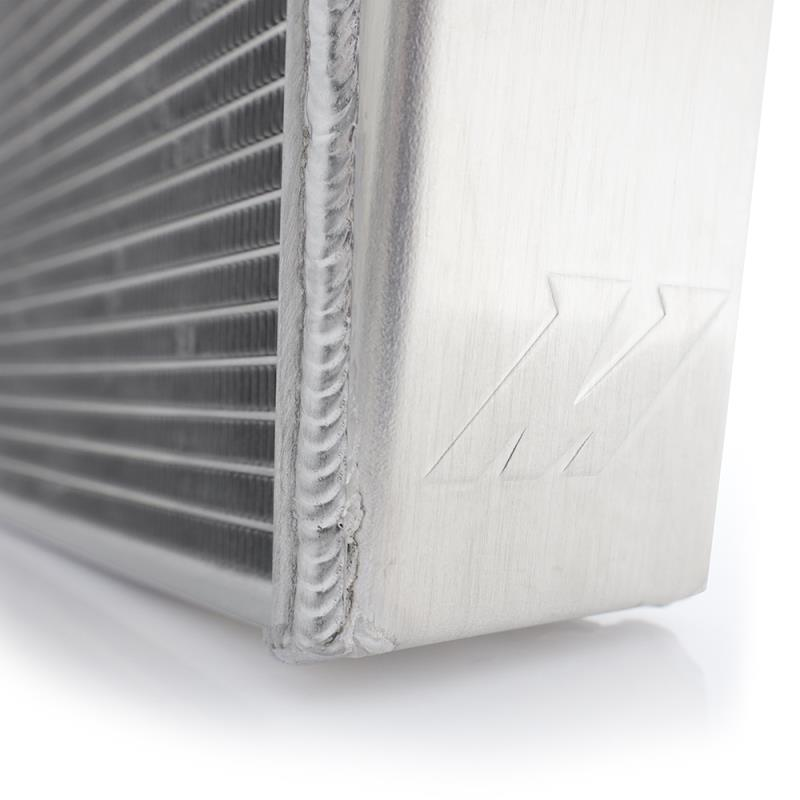

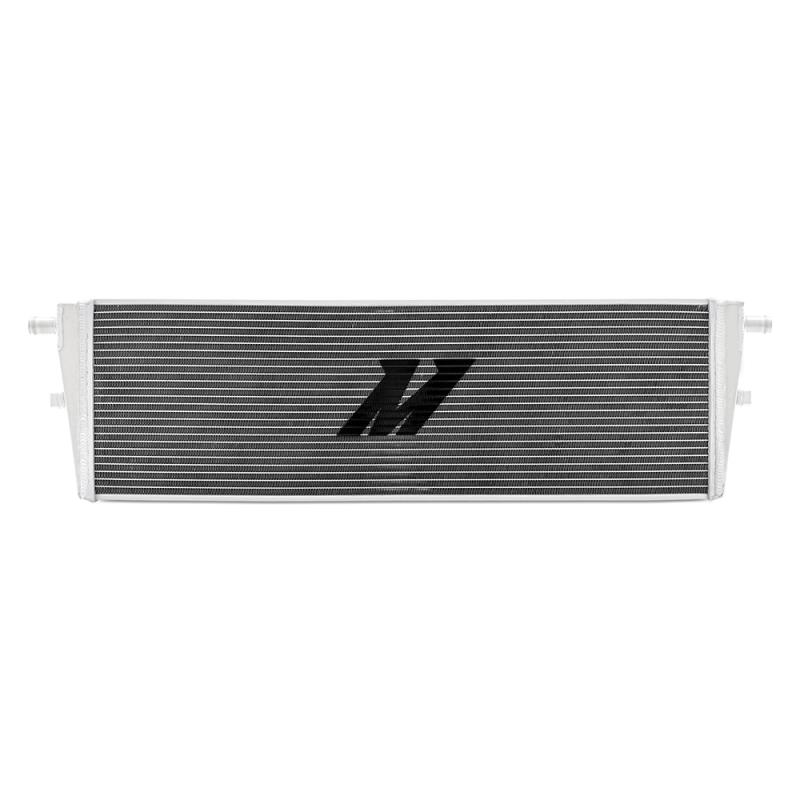

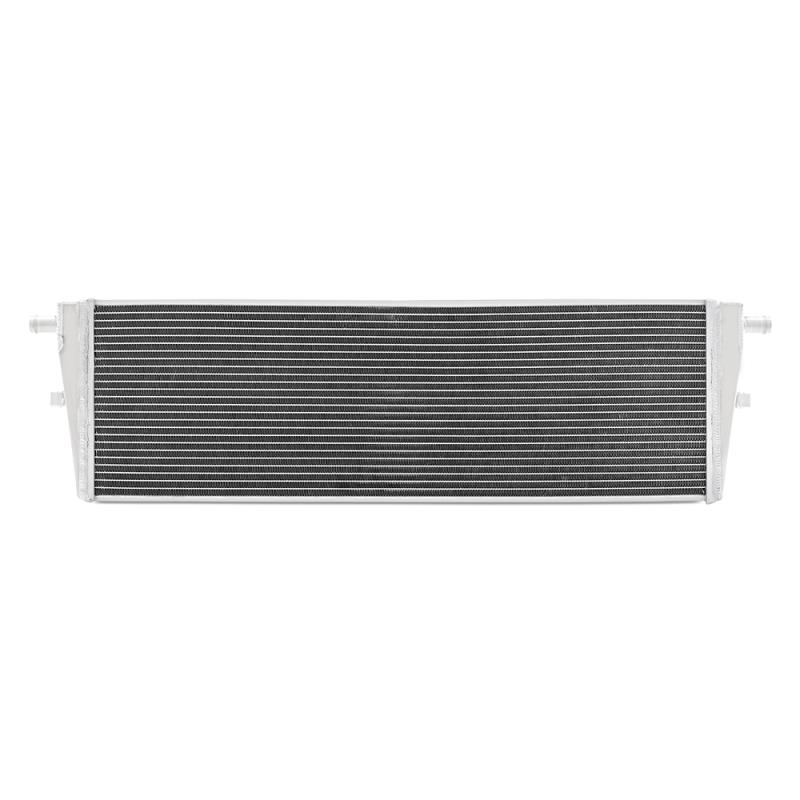

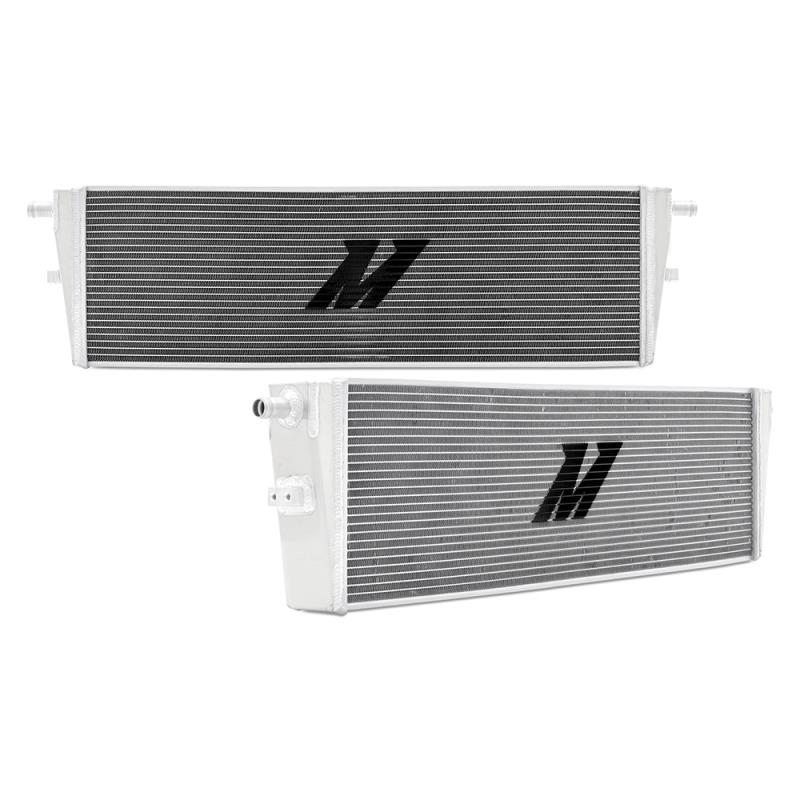

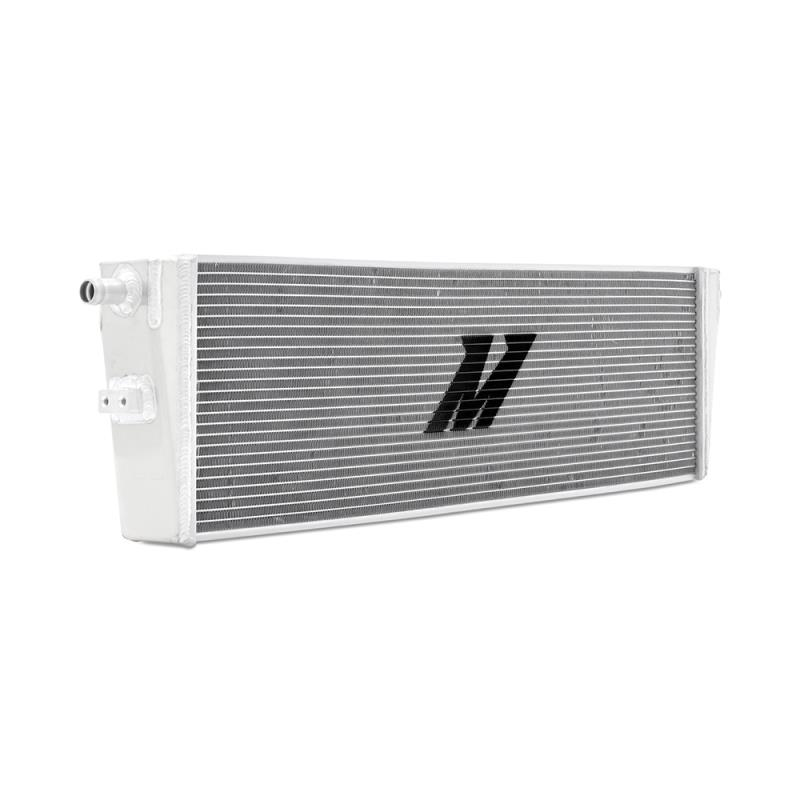

The Mishimoto MMRAD-HE-02 is a universal single-pass air-to-water heat exchanger designed for charge-air cooling systems up to 750 hp. A three-row aluminum core, TIG-welded end tanks and bead-rolled coolant connections provide a robust foundation for high-output custom intercooler systems.
Key features
- 25.98 × 7.81 × 2.04 in three-row core.
- 31.85 × 8.55 × 2.67 in overall dimensions.
- Bead-rolled 3/4 in inlet and outlet connections.
- M6×1.0 threaded universal mounting bosses.
- Approximate fluid capacity: 0.4 gal.
Application
Universal fabrication product. Verify packaging, flow requirements, mounting and hose routing for the intended system.
Confirm compatibility for your exact vehicle before ordering.
