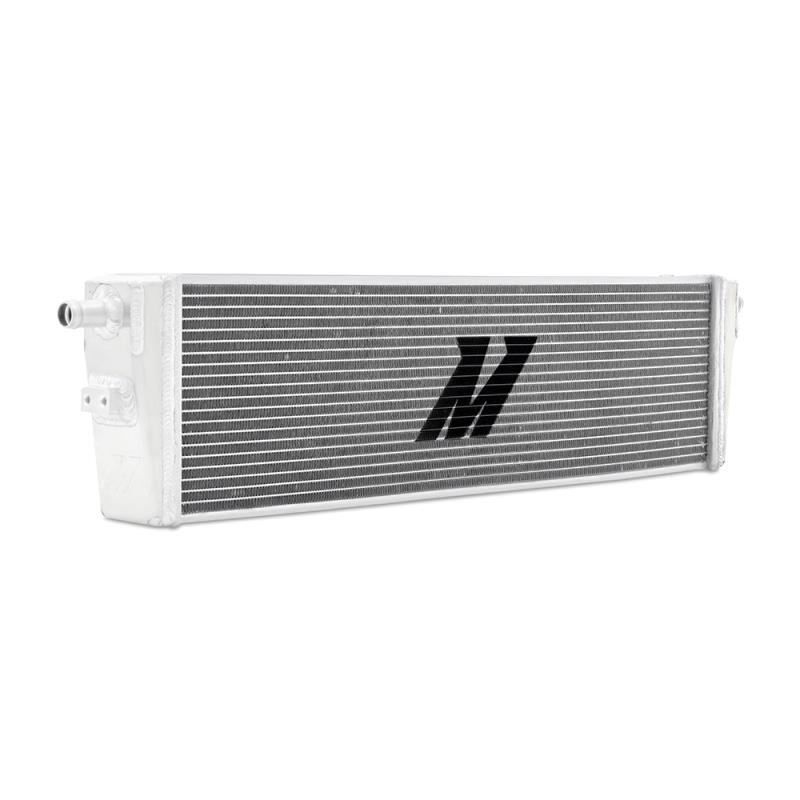

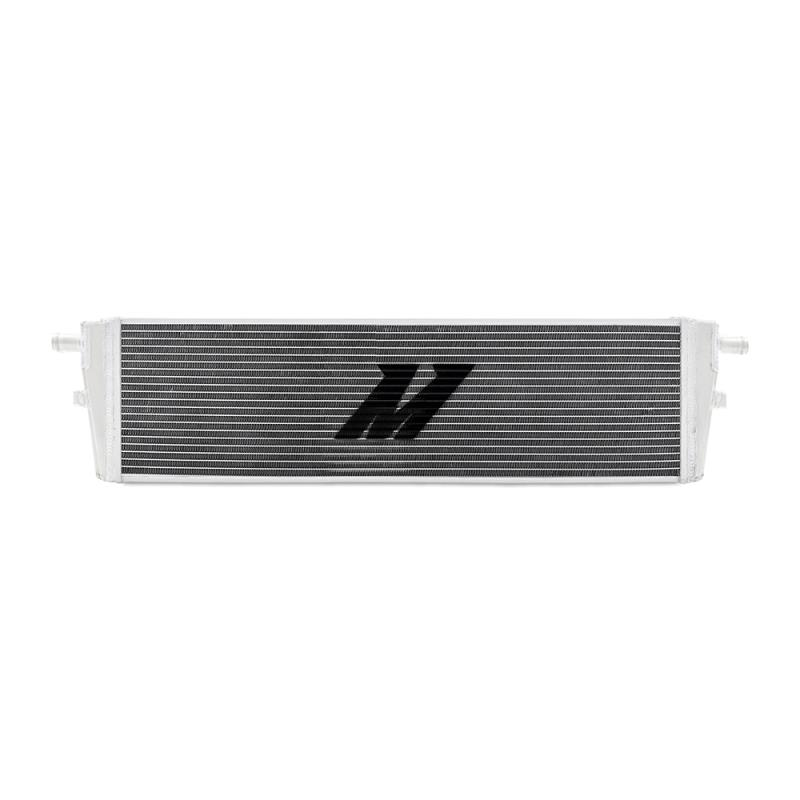

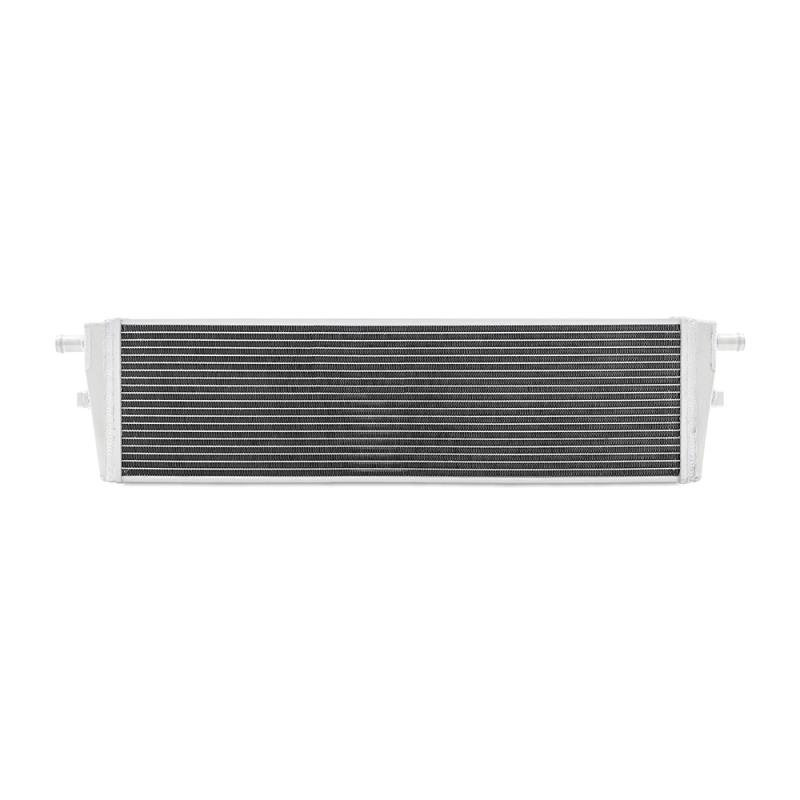

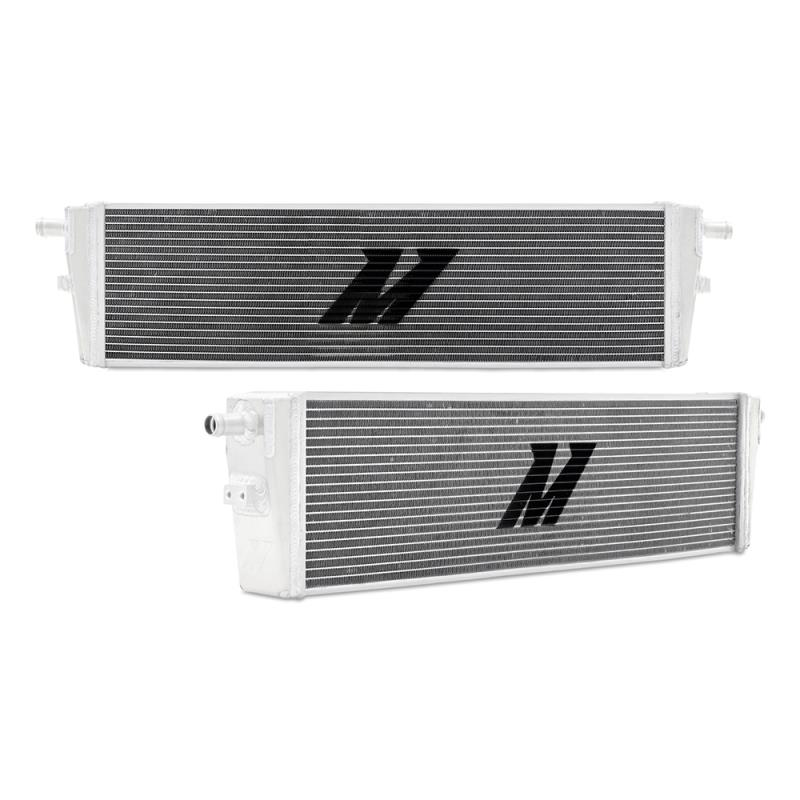

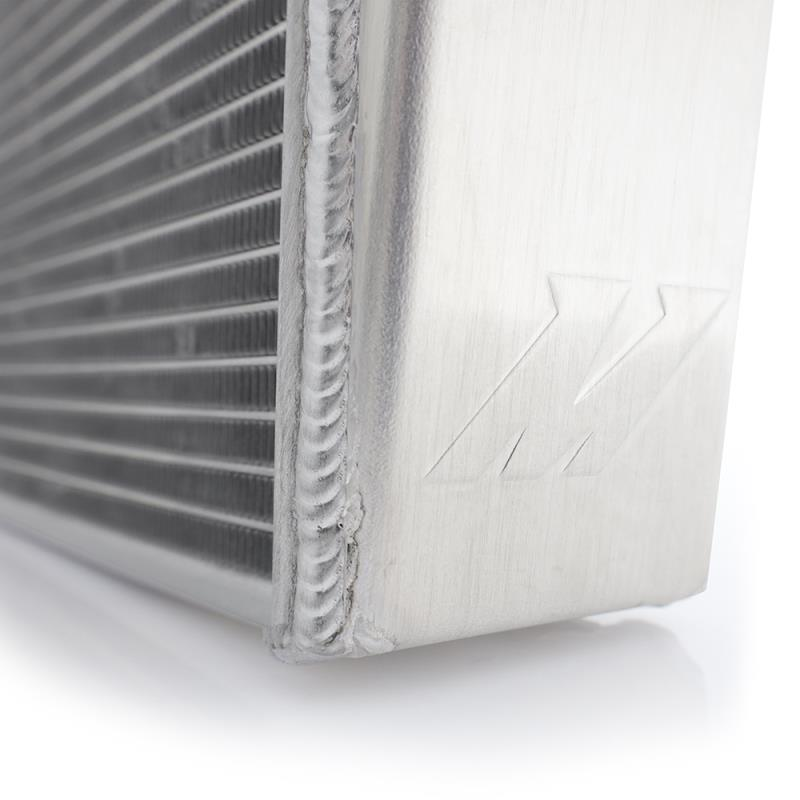

The Mishimoto MMRAD-HE-01 is a universal single-pass air-to-water heat exchanger engineered to support charge-air cooling systems up to 500 hp. Its three-row aluminum core and TIG-welded end tanks are designed for efficient coolant flow, heat rejection and durability in custom forced-induction installations.
Key features
- 23.62 × 6.14 × 2.04 in three-row core.
- 29.48 × 7.00 × 2.67 in overall dimensions.
- Bead-rolled 3/4 in inlet and outlet connections.
- M6×1.0 threaded universal mounting bosses.
- Approximate fluid capacity: 0.3 gal.
Application
Universal fabrication product. Verify available space, hose routing, coolant capacity and mounting before installation.
Confirm compatibility for your exact vehicle before ordering.
