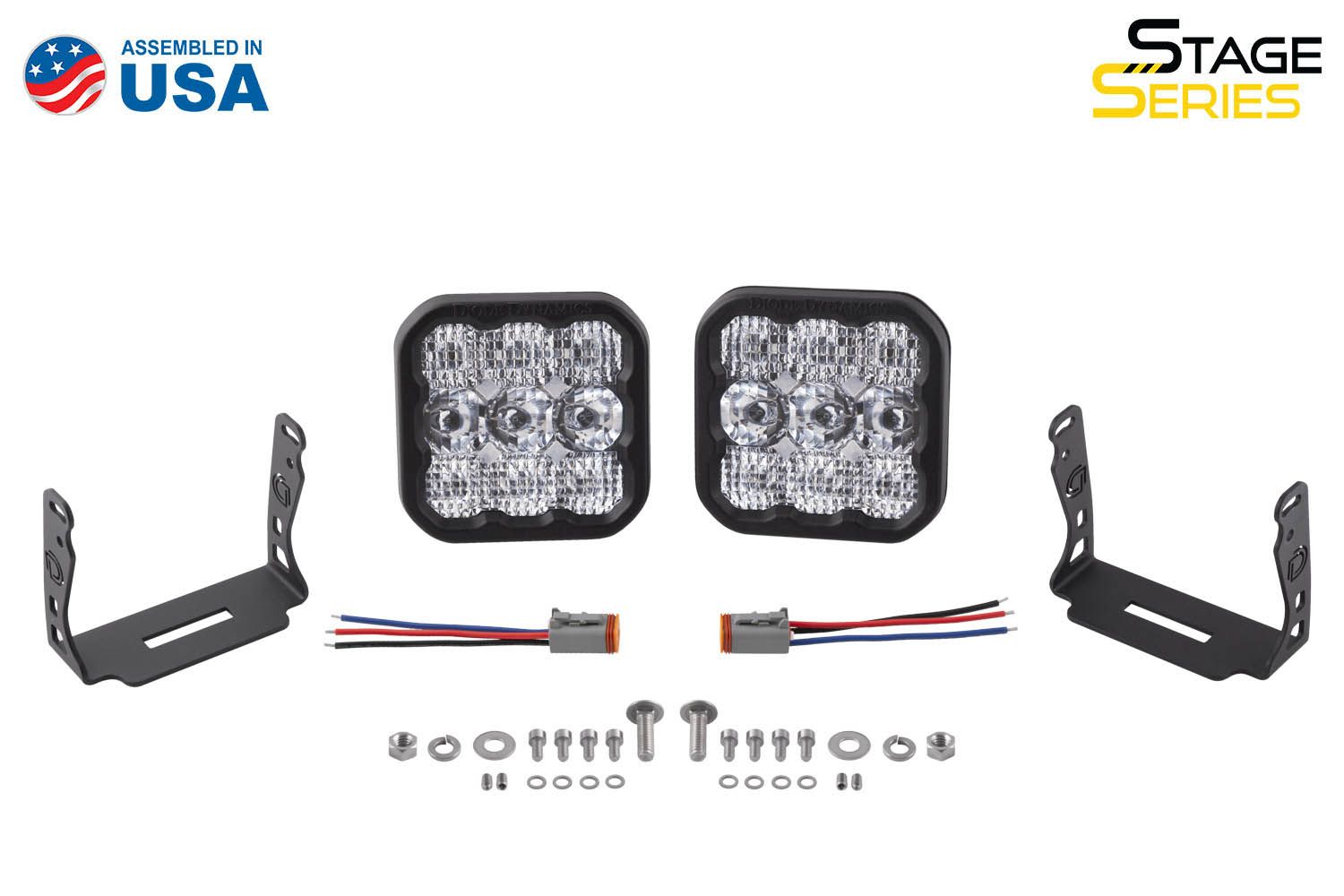

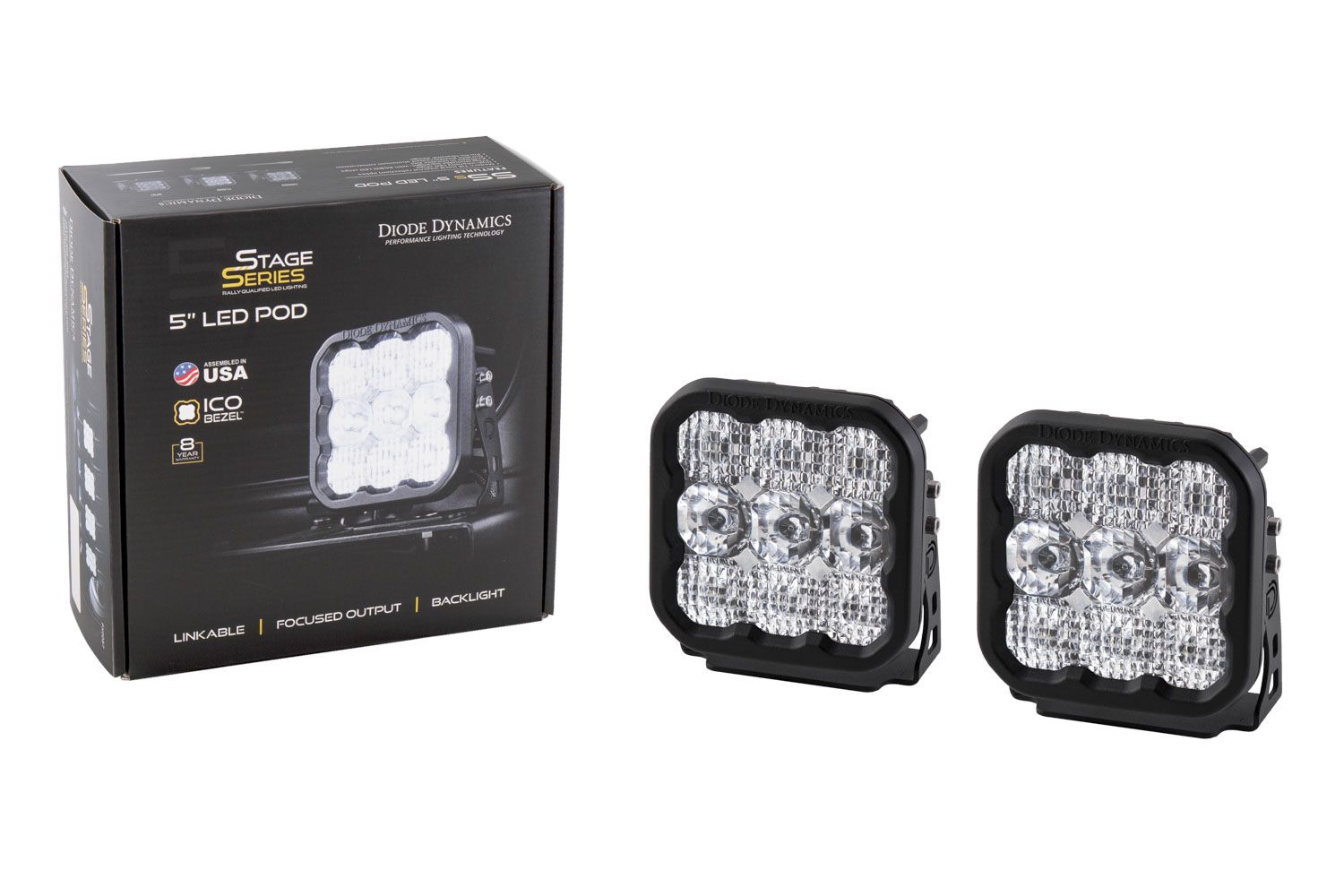

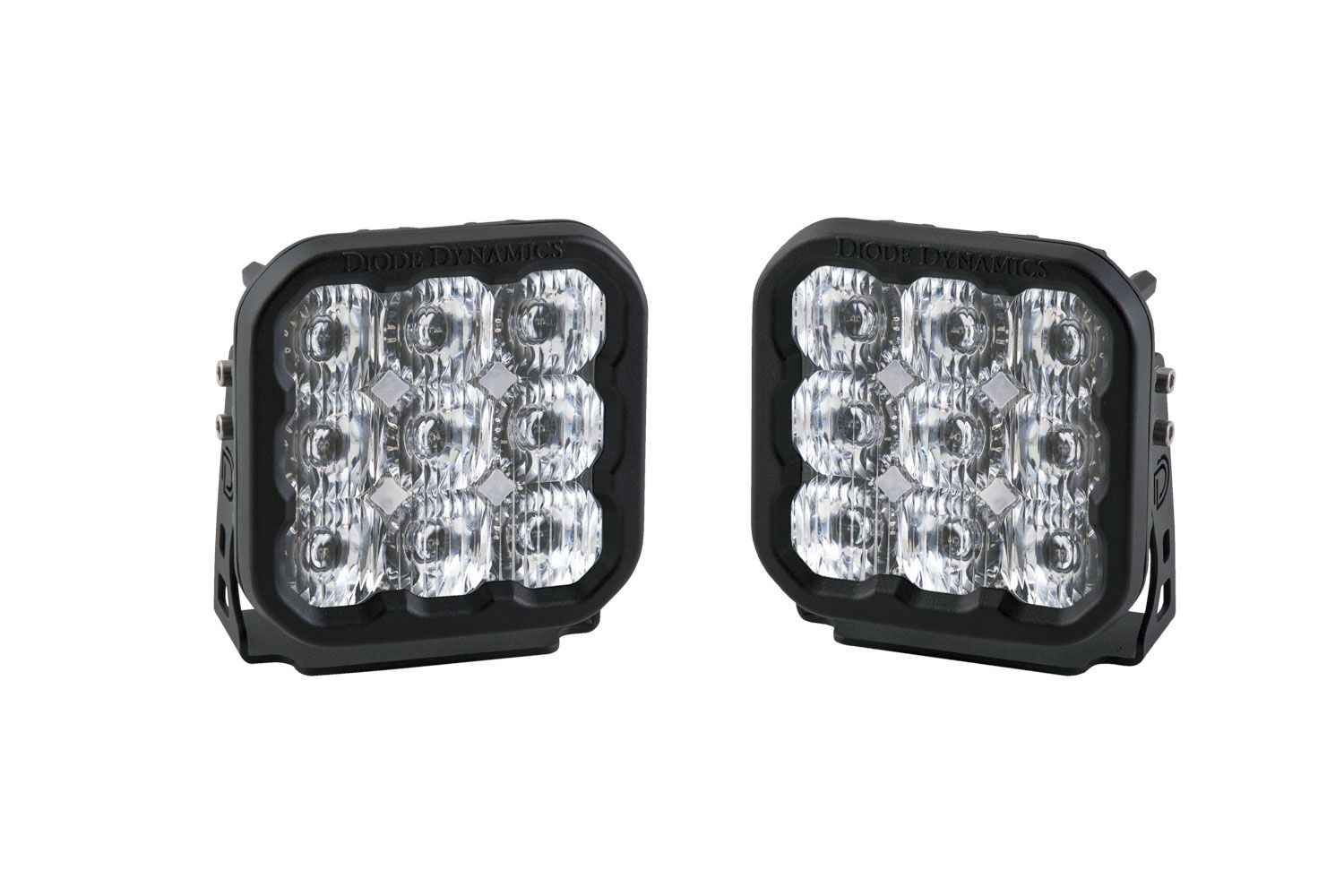

The DD6780P package contains two SS5 Sport pods with 6000K white Driving optics. Diode Dynamics’ TIR lenses create a focused 30-by-20-degree auxiliary beam, and a separate backlight circuit provides a low-power accent function. Each Sport pod is rated at 3,800 measured lumens, 131,300 candela, 1,300 lux at 10 metres and 40 watts on the main beam. Universal mounting brackets, hardware and Deutsch-style wire pigtails are supplied for custom off-road installations, while the primary wiring harness is selected separately for the vehicle.
Verified details
- Two SS5 Sport White Driving pods.
- 9–16V operation and 2.75A main-beam current per pod.
- IP69K rating; each pod measures 5.1 by 5.1 by 2.7 inches.
- Universal brackets and pigtails included; harness not included.
Application
Universal auxiliary-light application; no vehicle-specific fitment is claimed.
Caution
Diode Dynamics states that this Driving pattern is too intense for SAE auxiliary-high-beam compliance. Verify local laws, aiming and circuit capacity.
