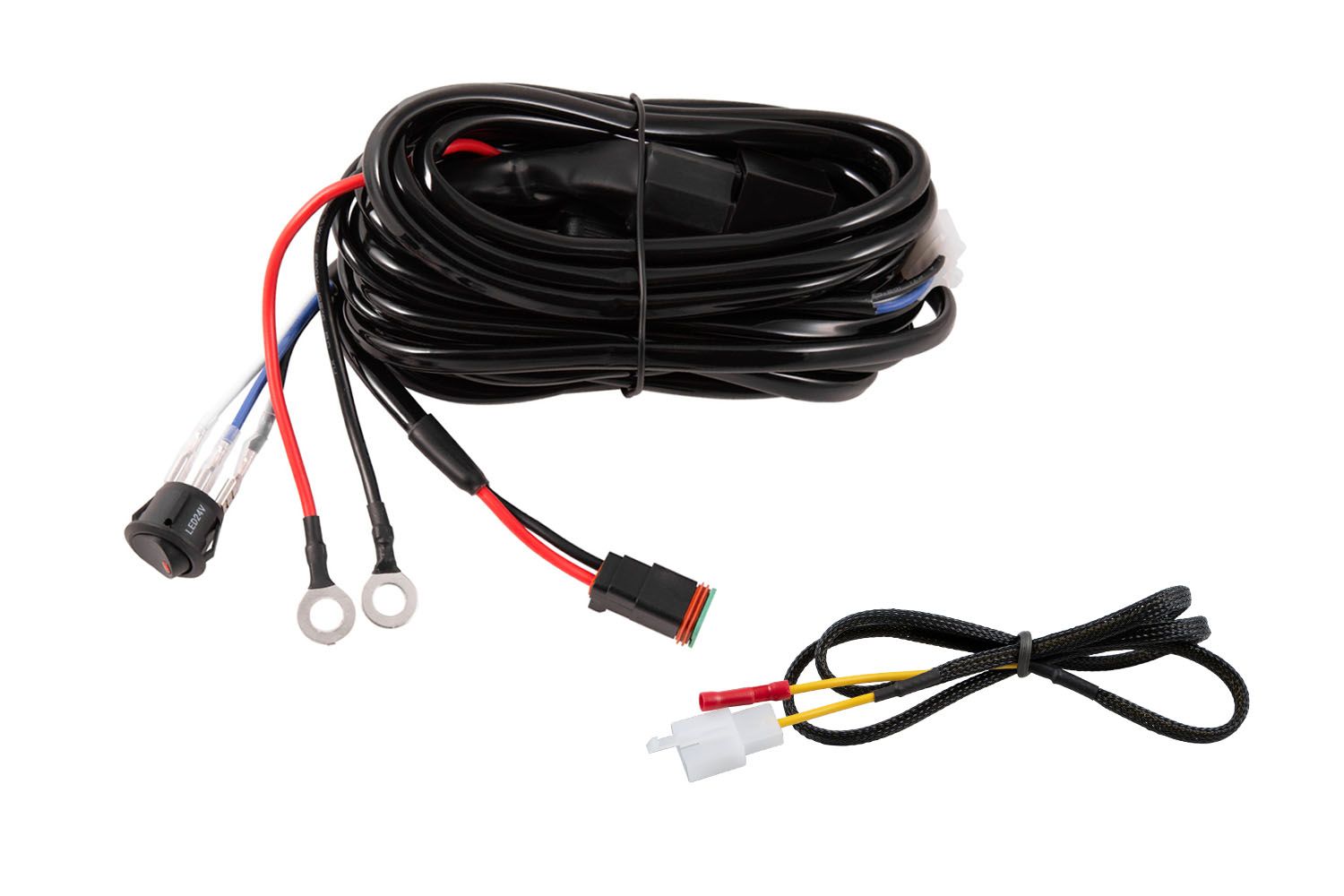

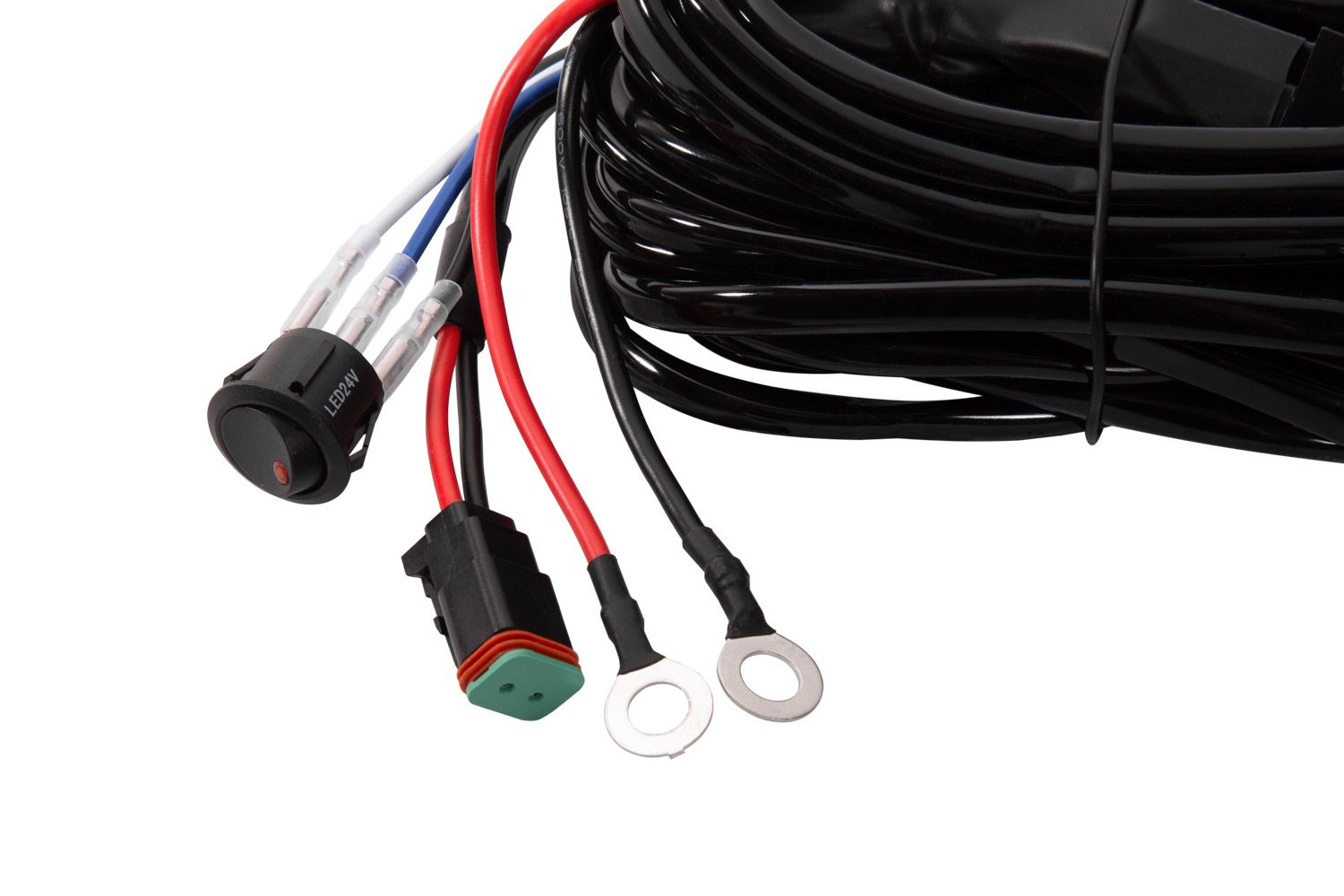

The DD4031 is a heavy-duty single-output harness for compatible two-pin off-road lights without a backlight circuit. It uses 14AWG wiring, a Deutsch DT output, a waterproof 30-amp fuse and a 60-amp 12V relay to carry loads up to 25 amps. A supplied two-position toggle switch controls the connected lamp, while the 226-inch loom provides routing length for many universal installations. The assembly is intended to connect a suitable Stage Series bar or pod setup directly to the battery with protected switching.
Verified details
- Single two-pin Deutsch DT output.
- 14AWG wiring, waterproof 30A fuse and 60A 12V relay.
- Maximum supported lighting load: 25A.
- Includes harness and two-way toggle switch.
- Official listing states a three-year warranty.
Application
Universal wiring for compatible non-backlit Stage Series lights using a two-pin input.
Caution
A 24V light-bar installation requires replacement of the supplied 12V relay with an appropriate 24V relay. Confirm total current and connector type before ordering.
